SPACEFRAME

At its core, a space frame (or space structure) is a rigid, lightweight, truss-like structure constructed from interlocking struts in a geometric pattern. Unlike traditional framing that relies on heavy, two-dimensional beams and columns to manage weight, space frames operate natively in three dimensions.

By utilizing the inherent rigidity of the triangle, flexing loads (bending moments) are transmitted as pure tension and compression forces along the length of each strut. This distribution allows space frames to span massive areas with minimal interior supports, making them incredibly efficient and structurally resilient.

Alexander Graham Bell (1898–1908)

While Alexander Graham Bell is universally known for the telephone, he is also the father of the modern space frame. At the turn of the 20th century, Bell became obsessed with achieving powered human flight. He quickly realized that traditional box kites became too heavy to fly as they were scaled up.

To solve this weight-to-surface-area problem, Bell turned to tetrahedral geometry—a pyramid shape with four triangular faces. Between 1898 and 1908, he designed massive “tetrahedral kites” at his estate in Nova Scotia. Because the tetrahedral cells could share joints, he could scale the structures to enormous sizes without a proportionate increase in weight.

His largest kite, the ‘Cygnet’ (1907), contained over 3,300 individual cells and successfully flew while carrying a human passenger. While his kites didn’t win the race for early aviation, Bell had successfully discovered and documented the tetrahedral truss—decades before architects and structural engineers would adopt it for building construction.

The Mid-20th Century: Buckminster Fuller and The Geodesic Revolution

While Alexander Graham Bell first harnessed the mechanics of the space frame, it was Richard Buckminster Fuller who adapted it to revolutionize the built environment.

Operating on a philosophy of “doing more with less,” Fuller spent the mid-20th century pioneering what he termed “synergetic-energetic geometry.” His breakthrough came in the 1950s with the patenting of the “octet truss”—a highly efficient, space-filling structural grid combining tetrahedrons and octahedrons.

Fuller’s crowning achievement with these principles was the geodesic dome. By mapping a network of triangles onto a sphere, he created self-supporting enclosures of unprecedented scale that were astonishingly lightweight and stable. Fuller proved that space frames were far more than structural anomalies; they were scalable, mass-producible solutions primed for the post-war building boom.

Buckminster Fuller’s iconic Montreal Biosphere from Expo 67—a masterpiece of geodesic space frame engineering.

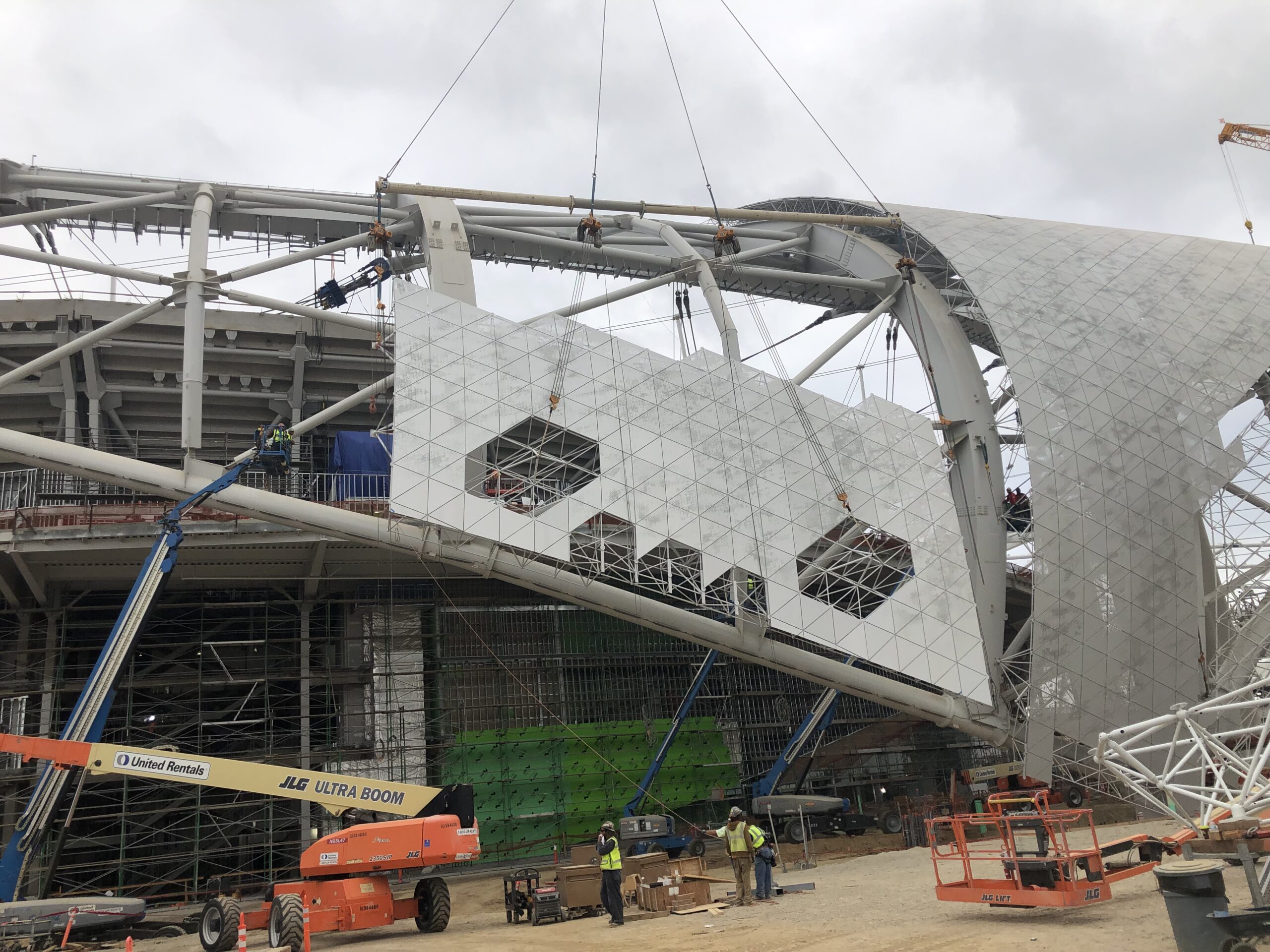

This era spurred the commercialization of standardized spherical nodes and tubular struts. Suddenly, space frames transitioned from experimental prototypes into the structural backbones of massive aviation hangars, sports arenas, and exhibition halls. This pivotal shift laid the exact foundation for the highly complex, long-span structural 3D modeling and coordination we execute today.

While Fuller’s visionary geometry proved what was possible on a massive scale, moving these structures from mid-century experiments to the highly coordinated, long-span projects we deliver today at DSI SpaceFrames required a breakthrough in everyday engineering. The overarching geometry provides mathematical strength, but to assemble these intricate webs on-site without field welding, the industry needed a standardized, foolproof physical connection. This transition from architectural theory to practical construction brings us to the very heart of the modern space frame: the spherical node.

How Space Frames Come Together

The genius of a modern space frame lies in its connections. While the geometric layout gives the structure its overall strength, it is the standardized, highly engineered joint that makes assembling these complex 3D structures possible.

The industry standard relies on a brilliantly simple mechanical relationship between a tubular strut and a central hub. Here is how the connection works:

• The Spherical Node : The central hub of the system. This solid, precisely machined steel sphere features threaded holes at specific angles to receive multiple struts from various directions.

• The Cone : A tapered steel cone is welded to each end of the tubular strut. This cone transitions the larger diameter of the tube down to the size of the connecting hardware, funneling the structural loads smoothly into the joint.

• The Bolt & Hex Sleeve : Inside the cone sits a high-strength threaded bolt. Over this bolt sits a hexagonal sleeve. Because the entire tubular strut cannot be rotated during assembly, a wrench is used to turn the hex sleeve. The sleeve engages the bolt, driving it outward and threading it securely into the spherical node.
